Wave Spring Seal

Product Code: CS92   Mechanical Seal

DESCRIPTION

The CS92 is a balanced component seal featuring an externally mounted wave spring, ideal for slurry, viscous, or abrasive media. Built to DIN 24960 standards, it offers high reliability in corrosive and high-pressure applications. Its modular design allows easy maintenance, and the seal operates independently of shaft rotation.

FEATURES
  • Wave spring positioned outside process media – reduces clogging risk
  • Balanced design for high pressure and temperature operations
  • Long service life in corrosive and solid-handling environments
  • Component design allows for quick replacement of parts
  • Suitable for both clockwise and counter-clockwise shafts
ADVANTAGES
  • Ideal for slurry, viscous, and abrasive media
  • External wave spring prevents clogging and improves performance
  • High-pressure and high-temperature sealing capability
  • Long service life with minimal maintenance Component design allows quick part replacement
  • Reliable sealing in aggressive and hazardous environments
Wave Spring Seal CS92 | Cosmos Seals
METAL PARTS DETAIL
  • Seal Face: Carbon / Silicon Carbide / Tungsten Carbide
  • Elastomers: Viton / EPDM / FFKM / Kalrez
  • Metal Parts: SS 316 / Alloy 20 / Hastelloy C
Applications Details
  • Chemical & Pharmaceutical Processing
  • Mining & Slurry Pumps
  • Power Plants & Refineries
  • Oil & Gas Handling Equipment
  • Pulp, Paper & Sugar Mills
Parameter Standard Value / Range
Diameter 25 mm to 100 mm (Shaft Size Range )
Max.Pres Up to 25 bar
Temp.Range -20°C to +220°C
Speed Up to 20 m/s

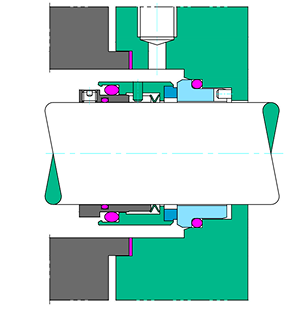

Wave Spring Seal CS92 Drawing | Cosmos Seals class=
