Wave Spring Seal

Product Code: C7N   Mechanical Seal

DESCRIPTION

The C7N is a single, balanced, internally mounted wave spring seal built to DIN 24960 / EN 12756 standards. Its compact design and axially flexible wave spring make it suitable for handling lightly contaminated or viscous media. The balanced geometry ensures reliable performance under high pressure and temperature, while its rotation-independent design fits both clockwise and counter-clockwise shafts.

FEATURES
  • Compact wave spring construction – ideal for limited space installations
  • Balanced seal for higher pressure handling
  • Suitable for media with slight contamination or suspended solids
  • Field serviceable and easy to install
ADVANTAGES
  • Suitable for a wide range of fluids – clean or lightly contaminated
  • Handles higher pressure than unbalanced seals
  • Lower wear and longer seal life
  • Compact dimensions allow use in tight spaces
  • Cost-effective and easy to maintain
  • Excellent replacement for standard DIN seals
Wave Spring Mechanical Seals | Cosmos Seals
METAL PARTS DETAIL
  • Seal Face: Carbon / Silicon Carbide / Tungsten Carbide / Ceramic
  • Elastomers: NBR / EPDM / FKM / FFKM
  • Metal Parts: SS 316 / Alloy 20 / Hastelloy C
Applications Details
  • Chemical & Petrochemical Pumps
  • Water & Wastewater Treatment Plants
  • Food & Beverage Industry
  • Pulp & Paper Mills
  • Utility Pumping Systems
Parameter Standard Value / Range
Diameter 16 mm to 100 mm (Shaft Size Range )
Max.Pres Up to 16 bar
Temp.Range -30°C to +180°C
Speed Up to 20 m/s

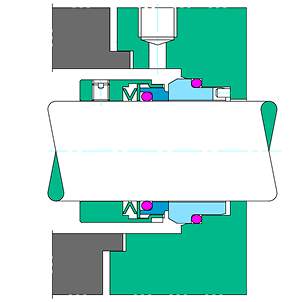

Wave Spring Seal C7N Drawing | Cosmos Seals class=
