Single Catridge

Product Code: SC10   Mechanical Seal

DESCRIPTION

A Single Cartridge Mechanical Seal is a pre-assembled, factory-tested sealing unit that includes the seal faces, gland plate, sleeve, and all associated hardware in one compact, easy-to-install assembly. It is commonly used in pumps, mixers handling moderate pressure and clean fluids. These seals are ideal for standard process conditions and offer an excellent balance of reliability, cost-effectiveness, and simplicity.

FEATURES
  • Pre-assembled single cartridge unit
  • Factory-set spring tension—no measurements required
  • Independent of shaft rotation direction
  • Integrated gland, sleeve, and rotary unit
  • Compact, modular design for easy replacement
  • Available with or without quench and drain ports
ADVANTAGES
  • Quick installation and removal – No setting errors
  • Reduced maintenance time and cost
  • Longer seal life under moderate conditions
  • Minimal shaft wear due to balanced design
  • Can be retrofitted into older pump designs
  • Suitable for both standard and hygienic applications
Single Cartridge Mechanical Seals | Cosmos Seals
SEAL FACE MATERIAL
  • Carbon vs. Ceramic
  • Carbon vs. Silicon Carbide
  • Silicon Carbide vs. Silicon Carbide
  • Tungsten Carbide vs. Ceramic
ELASTOMERS
  • FKM / EPDM / FFKM / PTFE (for chemically aggressive media)
METAL PARTS DETAIL
  • SS 316 / SS 316L / Hastelloy C / Alloy 20
Applications Details
  • Chemical transfer pumps
  • Water and wastewater pumps
  • Food & beverage industry
  • Pharmaceutical mixers and blenders
  • General industrial process pumps
OPTIONAL FEATURES
  • Quench, drain, or flush ports
  • CIP/SIP-compatible designs
Parameter Standard Value / Range
Diameter 25 mm to 75 mm (custom sizes available)
Max.Pres 10 bar(depending on seal size/design)
Max.Temp -20°C to +180°C
Velocity 20 m/s
Media Water, light, oils, solvents, chemical
Vaccum Full vaccum Capability

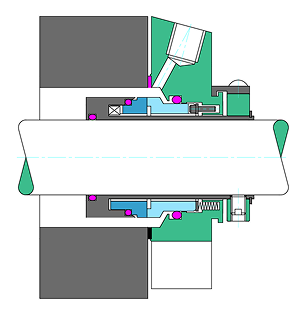

Single Cartridge Mechanical Seals Drawing | Cosmos Seals class=
