Single Agitator

Product Code: ASC10   Mechanical Seal

DESCRIPTION

Single agitator seals are specially designed mechanical seals used in mixers, reactors, blenders, and agitators operating under vacuum or pressure. These seals provide reliable performance in pharmaceutical, food, cosmetic, and chemical processing applications.

FEATURES
  • Compact single cartridge design
  • Factory-set for easy installation
  • Independent of rotation direction
  • Suitable for top, side, and bottom entry agitators
  • Accommodates shaft run-out and misalignment
  • Available with or without bearing support
ADVANTAGES
  • Reduced leakage and contamination risk
  • Maintenance-friendly design
  • Easy installation without measuring settings
  • Long service life under moderate pressure & speed
  • Compatible with CIP/SIP systems
  • Custom options for slurry or vacuum applications
Agitator Seals | Cosmos Seals
SEAL FACE MATERIAL
  • Carbon vs. Silicon Carbide
  • Silicon Carbide vs. Silicon Carbide
  • Tungsten Carbide vs. Ceramic
ELASTOMERS
  • EPDM / FKM / FFKM / PTFE (encapsulated)
METAL PARTS DETAIL
  • SS 316 / SS 316L / Hastelloy C / Alloy 20
Applications Details
  • Pharmaceutical reactors and fermenters
  • Cosmetic mixing vessels
  • Food and dairy processing tanks
  • Specialty chemical reactors
  • Bio-reactors
Parameter Standard Value / Range
Diameter 25 mm to 100 mm (custom on request)
Max.Pres Vacuum to 08 bar
Max.Temp -20°C to 180°C
Speed Up to 320 RPM
Mounting Top, Side, or bottom entry

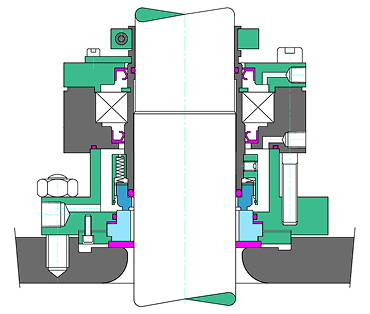

Single Agitator Mechanical Seal Drawing | Cosmos Seals class=
