Metal Bellows

Product Code: MB01   Mechanical Seal

DESCRIPTION

Metal bellows seals are non-pusher type mechanical seals using a welded or formed metal bellows instead of traditional dynamic elastomers. These are ideal for high-temperature, vacuum, and aggressive media applications where elastomers would fail.

FEATURES
  • No dynamic elastomers – suitable for high-temperature and vacuum.
  • Welded or formed metal bellows – flexible, pressure-balanced sealing.
  • Corrosion-resistant bellows material – usually SS316L, AM350, Hastelloy, Inconel, etc.
  • Available in single, double, and cartridge designs.
  • Axial movement compensation via bellows flexure.
ADVANTAGES
  • No fretting damage (no dynamic O-rings)
  • Handles thermal expansion
  • Compact axial design
  • Ideal for hazardous, viscous, or polymerizing media
Metal Bellow Seals | Cosmos Seals
SEAL FACE MATERIAL
  • Carbon, Silicon Carbide, Tungsten Carbide
BELLOWS
  • SS316L,Inconel, Hastelloy
ELASTOMERS
  • Graphite foil, PTFE (only static), FKM
METAL PARTS DETAIL
  • SS316, Hastelloy C, Duplex, Monel
Applications Details
  • Petrochemical
  • Pharmaceutical
  • Oil & Gas
  • Paper & Pulp
  • Food Processing (with special face materials)
  • Chemical Processing
Parameter Standard Value / Range
Shaft Size 12 mm to 100 mm or custom
Max.Pres Vacuum to 40 bar
Max.Temp -40°C to +400°C
Speed 25 m/s

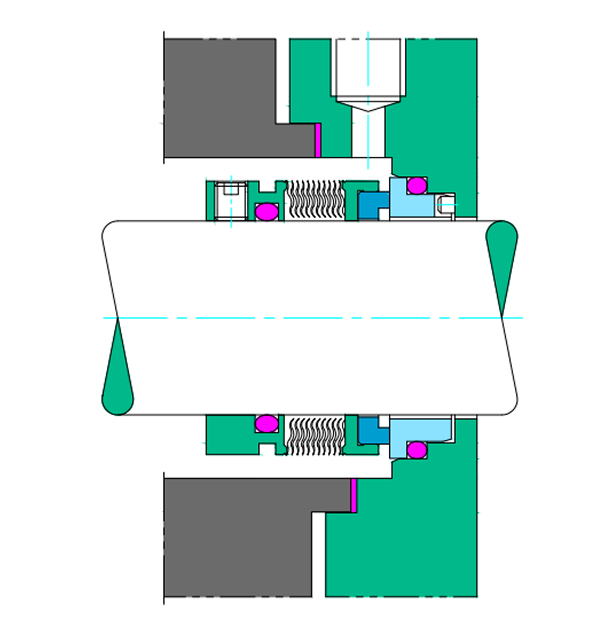

Metal Bellows MB01 Drawing | Cosmos Seals class=
