Double Agitator Seal

Product Code: ASD20   Mechanical Seal

DESCRIPTION

Double agitator seals are used in demanding applications requiring zero leakage, product purity, and environmental protection. These seals operate with a barrier fluid between the inner and outer seal faces, ensuring superior reliability for critical mixing and agitation processes.

FEATURES
  • Double cartridge design with integrated bearing (optional)
  • Balanced seal faces for high-pressure applications
  • Suitable for top, bottom, or side-mounted agitators
  • Handles high vacuum and pressure
  • Ideal for hazardous or sterile environments
  • Compatible with CIP/SIP cleaning systems
ADVANTAGES
  • Total isolation of product from atmosphere
  • Superior sealing performance in vacuum and pressure
  • Enhanced safety in toxic, flammable, or sterile media
  • Long operational life and reduced downtime
  • Built-in barrier connection ports
  • Simplified maintenance and installation
Double Agitator Seal | Cosmos Seals
SEAL FACE MATERIAL
  • Silicon Carbide vs. Silicon Carbide
  • Tungsten Carbide vs. Tungsten Carbide
  • Carbon vs. Ceramic (for outer seal)
ELASTOMERS
  • FKM / EPDM / FFKM / GFT / PTFE (encapsulated)
METAL PARTS DETAIL
  • SS 316 / SS 316L / Hastelloy C / Alloy 20
Applications Details
  • Sterile pharmaceutical reactors
  • Cosmetic and hygienic mixing vessels
  • Chemical process reactors with toxic media
  • High-purity food and dairy fermenters
  • Biotech and fermentation tanks
BARRIER FLUID COMPATIBILITY
  • Water, Glycol, Mineral oil, Synthetic oil
  • Thermic fluid for high temp. applications
Parameter Standard Value / Range
Diameter 25 mm to 150 mm (custom on request)
Max.Pres Vacuum to 20 bar(Inner Seal)
Barries.Pres 1.5 to 3 bar higher than process side
Temperature -20°C to 200°C
Speed 600 RPM
Mounting Top, Side, or bottom entry

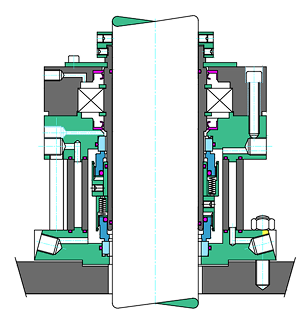

Double Agitator Seal Drawing | Cosmos Seals class=
